Simplify Network Management with Cradlepoint E3000 Setup

The Cradlepoint E3000 is a business-grade router that provides high-performance 5G/LTE connectivity, specifically designed for remote and branch offices. Additionally, its high throughput, effective security, and cloud-based infrastructure make it a perfect choice for firms that need high-performance networks and support for wireless WAN.

Similarly, if you have just purchased this router for your home or enterprise use, you must know how to access & configure it. Therefore, this guide will take you through the Cradlepoint E3000 installation and configuration. Additionally, you will explore its main features, troubleshooting information, and quick ways to maximize your router’s performance. So, let’s get started!

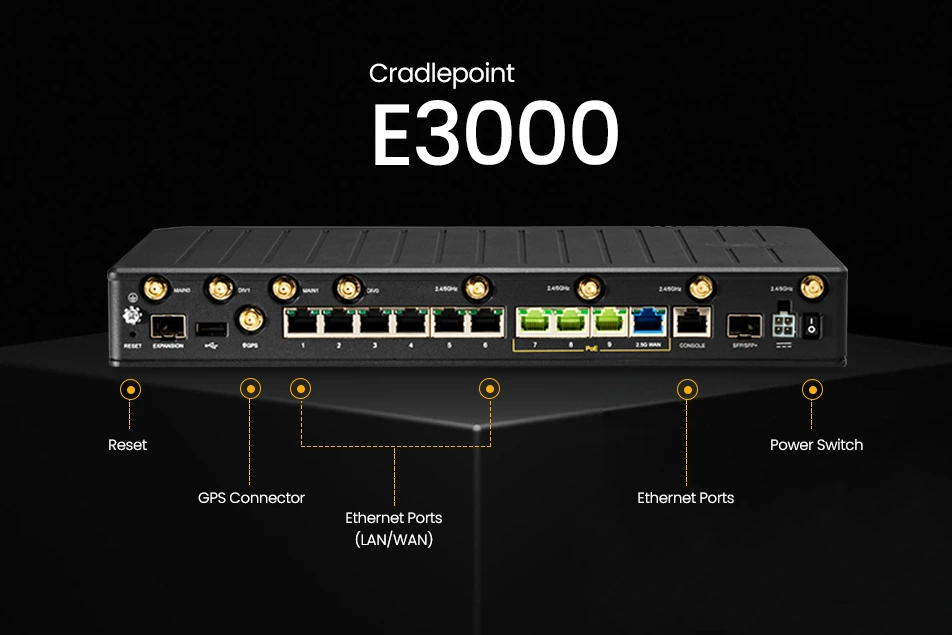

Overview of Cradlepoint E3000 Features and Specifications

As defined above, the Cradlepoint E3000 router is an enterprise-level Wi-Fi router specifically designed for mid-sized branch offices and high-demand environments. Moreover, these networking gadgets are compatible with all-wireless WANs and hybrid wired/wireless networks.

These devices promise to deliver high security, performance, and better management. Apart from this, here are the key features that set the Cradlepoint E3000 apart from others:

Embedded 5 GB low/mid-band or C18B mode modem
4*SMA cellular antenna connectors
4*802.3 bt PoE type 3/4
Dual-band Wi-Fi 6 (2.4 GHz or 5 GHz) with 4x4 MIMO
Dual SIM slots with auto carrier selection
WPA, WPA2, WPA3 Personal, WPA2/WPA3 Enterprise, Open security models
4*4 External antennas
100-240 VAC 2.3 A power input, and 54 VDC 3.34 A
Client count up to 100
Cloud-based management with Cradlepoint NetCloud
Advanced security features like VPN, firewall, and SD-WAN support
Ideal to operate between 0 °C to 50 °C temperature

Above all, the Cradlepoint E3000 enabled cutting-edge enterprise networking at a competitive price of $799.22, making it an ideal choice for those seeking premium, secure, and high-performance devices.

Preparing for Installation

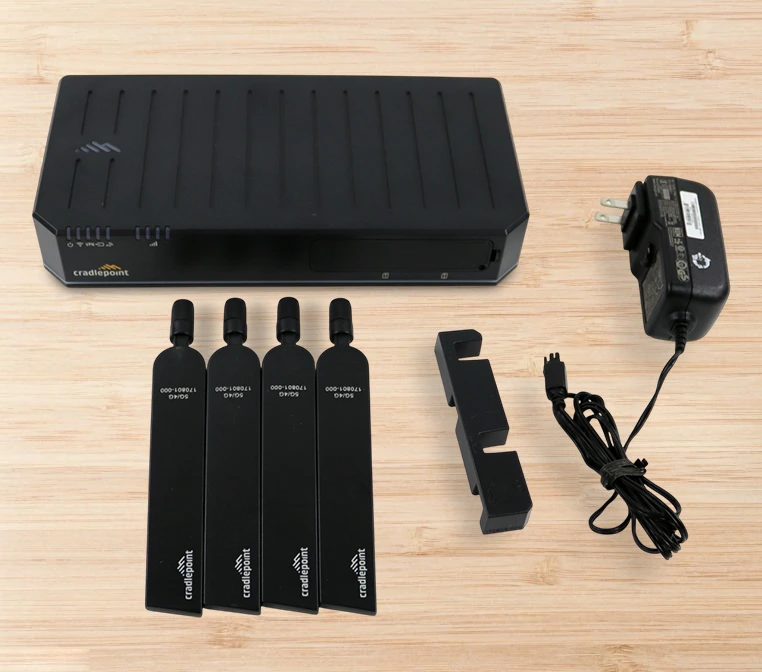

Before beginning with the setup, you must carefully unbox your networking device and ensure that the standard accessories are included. Additionally, it is essential to make sure you have all the required accessories, including a power adapter, cable, cellular and wifi antennas, mounting hardware, etc. After that, consider these things while installing your router:

First of all, make sure your device is placed at an optimal location near the wall socket.
Avoid placing it near metal or electromagnetic objects, concrete walls, trees, glass, etc.
Additionally, place the router in a ventilated and spacious area and keep it away from direct sunlight.
Then, make sure you have all the required tools for the router setup.
Next, remove and lift away the modem door, covering the router’s SIM card slots.
Then, insert the SIM card into the SIM slot 1 and make sure you hear the click when it is placed.
You can also place the second SIM card, if you want.
Similarly, slide the modem into its slot and confirm that the USB plug is facing the Cradlepoint logo.
Then, reinstall the modem door and secure it with the door screws.
Further, attach the cellular antennas to the MC400 modular modem.
Next, slide the antenna alignment tool down the antennas, pointing straight out from the router.
Make sure the antenna snapped into its place and connect it to the router with the 2.4 or 5 GHz ports.
Then, mount the router using the included rubber feet or other mounting material.
Further, connect the WAN port of the router using the Ethernet cable.
Now, power on your wifi router and wait for 1 minute to complete the bootup.
Finally, you can now activate your router via the NetCloud Manager.

Quick Note: You can mount it on a desk, wall, or rack using the screws and anchors at the desired location.

Step-by-Step Router Configuration

After installing your wifi router, it is crucial to set up different settings on your device to explore the full potential of your device. If you own this router and want to configure it for your home use or enterprise network, do follow these steps:

First, power on your E3000 router using the provided power adapter and PoE, and switch ON the power button.
Then, check the LED indicators on the front panel and make sure it is solid green or blue.
Now, connect your devices either using the wired or wireless connection.
Make sure you have the correct SSID and password, or the compatible Ethernet cables to connect your device.
After that, ensure the WAN (internet) connection, using the Ethernet cable or cellular SIM card.
Now, open any web browser on your computer and enter the default IP address 192.168.1.1 or 192.168.0.1.
You can also navigate to cradlepointecm.com to log into the NetCloud Manager account.
If you are a new user, follow the on-screen instructions to create an account.
Otherwise, use your registered email and password to log into the administrative account.
Now, go to Devices from the navigation panel and tap edit to change your name, email, password, and other account details.
Hereon, you can also enable and set up multi-factor authentication.
Further, go to Settings and adjust the settings as per your preferences.
Then, visit the Groups, Networks, Tools, Integrations, account, etc. sections to configure router settings.
At last, save all the changes, and you can now manage your Ericsson Cradlepoint E3000 Router from the Netcloud manager.

Troubleshooting Common Cradlepoint E3000 Setup Issues

Sometimes, the Cradlepoint E3000 router takes more time to connect to the internet. But, if it takes longer than 5 minutes, then you must connect your device to the local UI of your router to configure the device settings. Moreover, there can be several scenarios, such as “no internet”, “device offline”, or “intermittent internet connectivity” issues, in which your device needs troubleshooting. Let’s walk through it step-by-step:

First of all, make sure your modem is working correctly and broadcasting strong wifi signals.
You can connect your router to the modem via Ethernet cable or wireless connection.
If you are unable to connect your device to the modem, consult with your internet provider or the modem manufacturer.
Most importantly, ensure that your Netcloud software is up-to-date. Otherwise, log in to the NetCloud dashboard to check the updates.
Next, check the signal strength and make sure your modem is working correctly.
Use an updated and compatible web browser for logging into the router’s interface.
Additionally, cross-verify the login credentials and make sure all the entries are correct.
Moreover, ensure a sufficient power supply and use the compatible power sources.
Next, check that the SIM card and modem are properly placed.
If any of the modems or SIMs are not working correctly, replace them.
Restart your modem and router to fix these internet connectivity issues.
Use a different IP address for different devices on the Cradlepoint network.
If none of these solutions work, reset your modem or router.

To sum up, the Cradlepoint E3000 router is a perfect blend of advanced technology, seamless connectivity, security, & cloud-based management. If you want to know more about this next-gen enterprise-level device, drop us a line.
